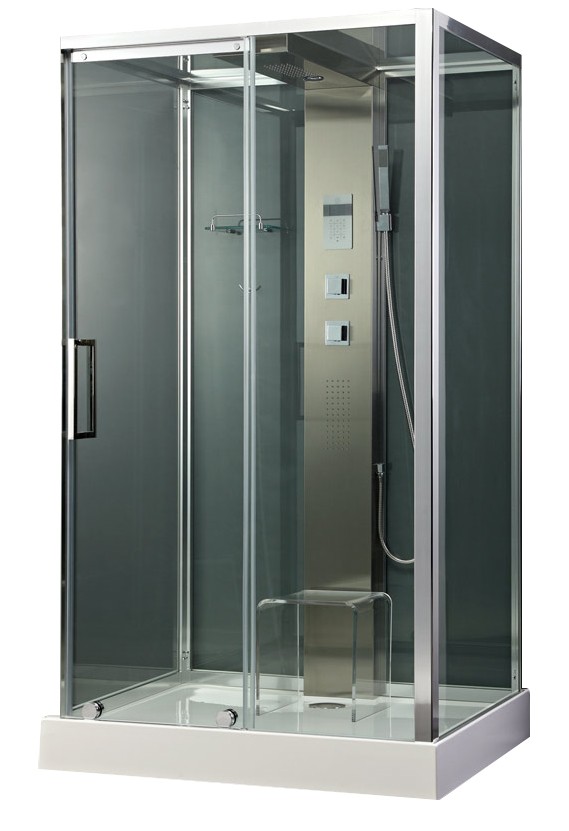

Steam shower 90x120 cm SGM-DC507

• modern electronic LCD touch control panel (completely hidden in the glass shell).
• upper interior lighting in a steel rain shower
• shelf for cosmetics and bath lotions
• towel hook
• CD (cinch connector) and landline connection
• FM radio, search and save radio stations
• built-in internal speaker
• built-in fan in the upper rain shower
• shower mode switching (hand shower, rain shower, side jets)
• ozone disinfection
• outdoor temperature sensor
• alarm

Shower and hydromassage system:

• single-lever progressive faucet The heart of each faucet is the head mounted in it. In the case of the battery in this model, the so-called progressive head, i.e. the central part of the battery responsible for controlling the amount of outflowing water (throughput) and setting the correct mixed water temperature. In the case of a progressive head, the control is carried out with a single handle operating in one plane. This solution allows you to significantly reduce costs in the household by limiting the amount of water and energy used (reducing the consumption of hot water).

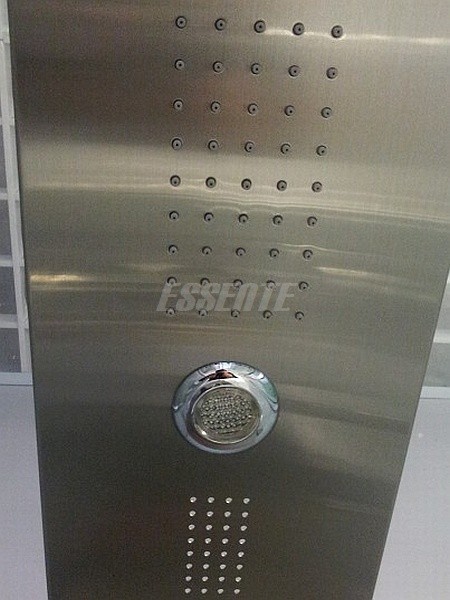

• 65 micro-nozzles (so-called acupuncture nozzles) in the shower panel for back massage
• top shower (steel head shower with micro-nozzle system)
• all nozzles are anti-calc (anti limescale)
• single-function hand shower

Sauna:

• power of steam generator used: 2.8 kW
• sauna temperature range: 20 - 60ºC
• steam generator runtime setting
• electronic water level control (protection against starting without water)

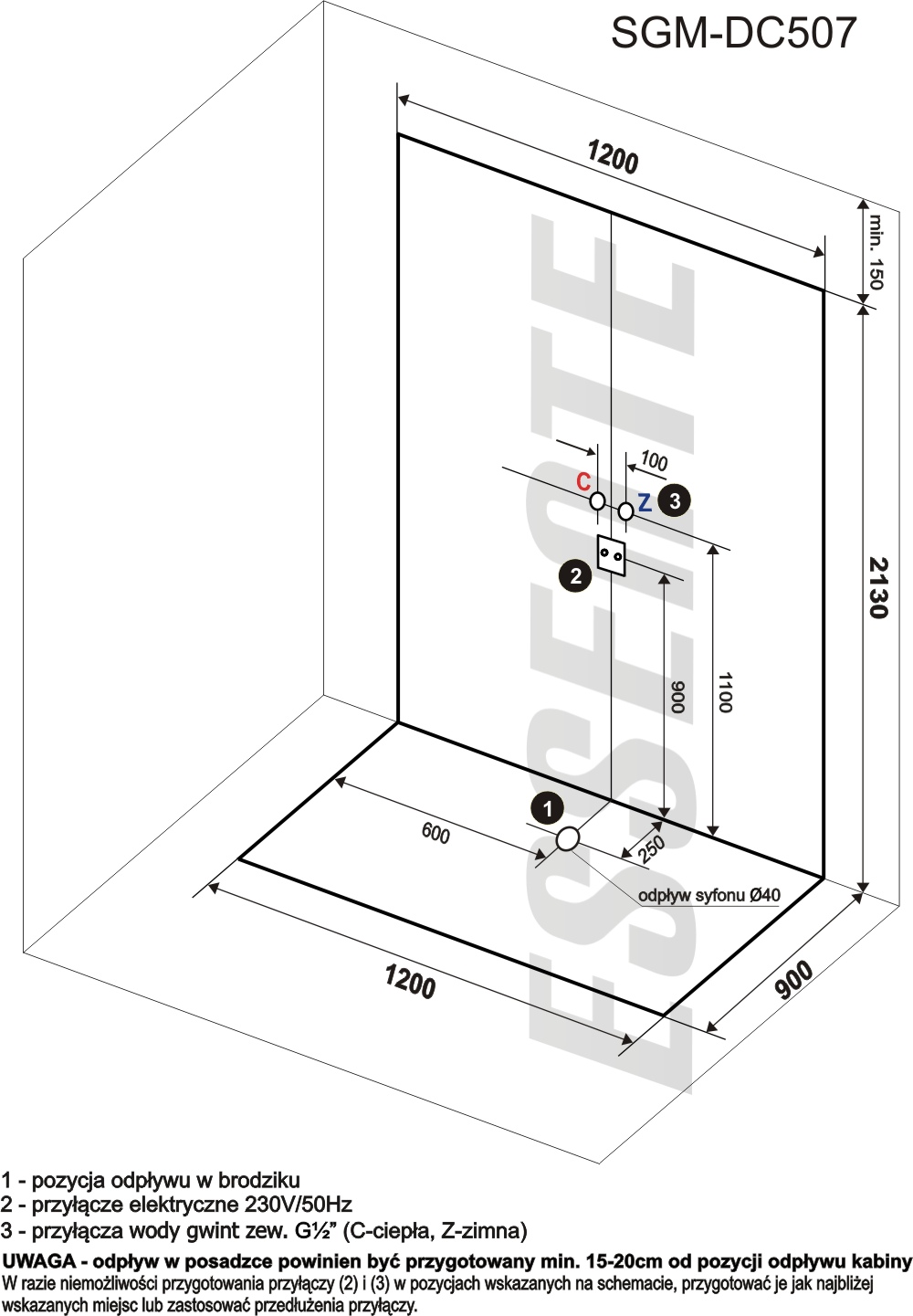

Dimensions [LxWxH]: 900x1200x2130 mm, paddling pool 138 mm (external dimension), internal height in the cabin - 1980 mm. Gross weight of the set: 170 kg.

Material: toughened glass, grade I, thickness 6 mm, shatterproof, all glass elements (doors, front windows, side windows , roofing) - transparent glass. Top-quality aluminum profiles (100% pure aluminum), the shower tray (white color) made of high-class PMMA sanitary acrylic (note - it is not ABS , used in cheap cabins), on a steel frame with horizontal adjustment. Central shower panel made of # 304 chrome-nickel-plated stainless steel (inox - brushed steel). Permanent magnetic aluminum seals and brass rollers were used to close the cabin door. Chrome-plated shower fittings (faucet, door handle, chrome-plated brass evaporator outlet).

Electrical parameters:

• AC 230V / 50Hz
• minimum cross-section of the power cord: 3x2.5 mm Cu
• voltage in the internal circuit: 12V
• overvoltage protection of the control module
• protection class: IPX5 IP class ("International Protection Rating") - the degree of protection provided by the electrical device housing. IPX4 or higher protection is required for whirlpool tubs or steam and massage cabins.
• rated power ≦ 3000W The value refers to the maximum power rating of all installed electrical components
